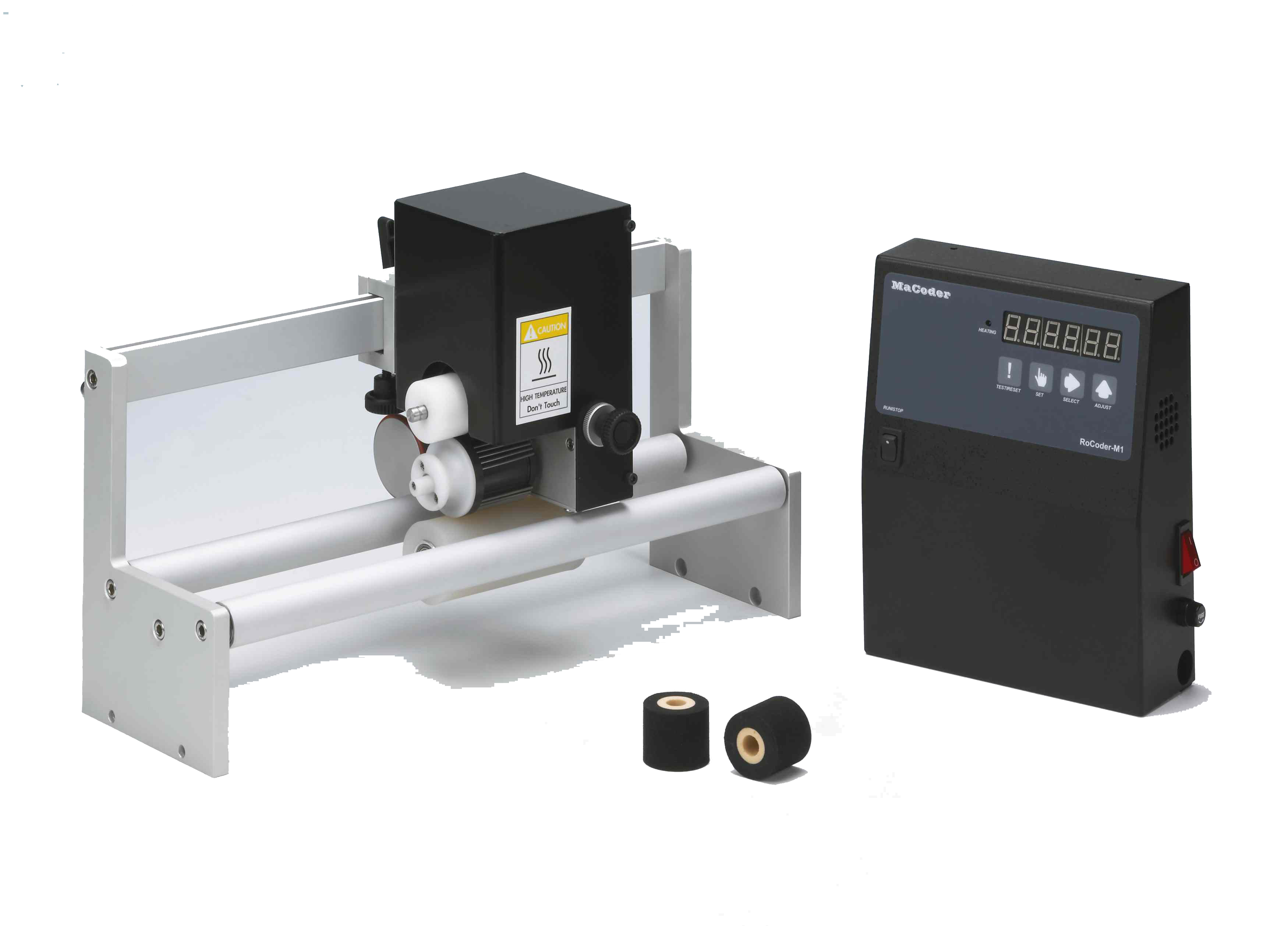

Date Coding Device
Our machines can be equipped with different types of date coding devices such as ink jet printers, thermal date coding devices etc. The date coding device is used to print precise, easy-to-read and indelible date codes and batch codes that are not only critical for many industries but are also mandatory by many Governments around the world. These devices have the ability to print use-by dates, best-before dates and batch codes.


Pouch packaging machine for packing of milk in pouches

Machine Specification

Output Quantity 250ml – 1000ml
Output 1500~2000 packs/hr.
Filler Accuracy ± 3 gm
Westage 1~2 Meters at start up
Pack / Quantity Range
Min. Bag size (W x L) approx
Max. Bag size (W x L) approx
100 mm x 135 mm
225 mm x 350 mm
Packaging Material Co-extruded 3 or 5 Layer PE Based
or Laminated 65 to 120 microns
Film Reel Core dia 76 mm & Reel
diameter 300 mm max. Width 400mm~690mm
Electrical Requirement
Input Supply 208/240 V, 3 phase 60 Hz, 3 ph + N + G
Connected Load 5.5 KVA
Peak Power Rating 5 KW
Cooling Water
Flow Rate 200 ltr/hr
Temperature Range 6° to 10°C maintained
Minimum Pressure 6 bar
Machine Dimensions(W x D x H) approx. 850 mm x 700 mm 2760 mm
Weight 700 kgs (Net)
Suitable for Packing Pasteurized milk, cream,
edible oil, butter oil

pasteurized fruit pulp and water.
