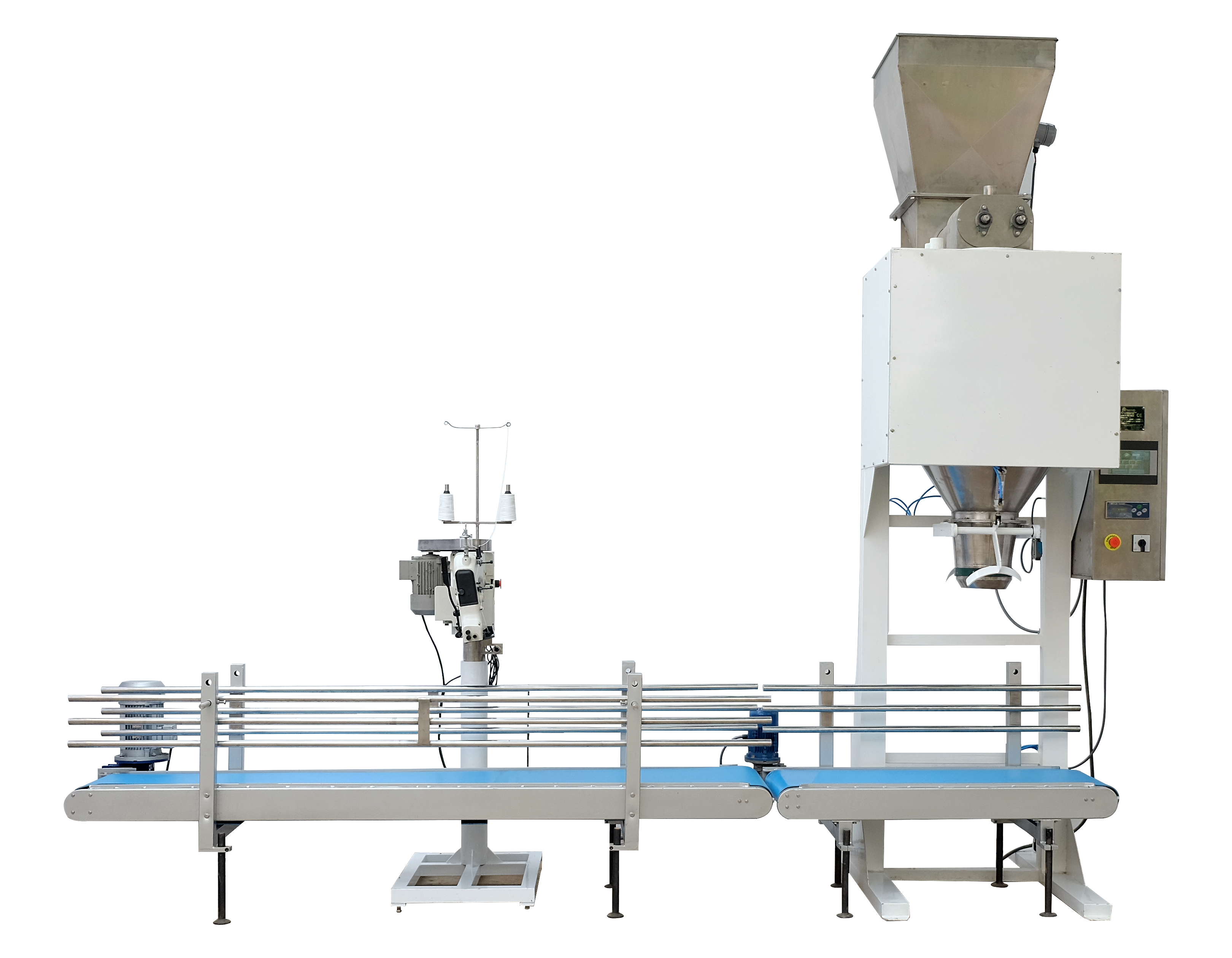

Machine Specification

Output Quantity 5kg – 20 kg
10kg-50 kg
Output 10 – 15 bags/min
06-12 bags/min
Filler Accuracy ± 0.05-0.25 %
Pack / Quantity Range
Min. Bag size (W x L) approx
Max. Bag size (W x L) approx
305 mm x 356 mm
533 mm x 890 mm
Packaging Material Co-extruded 3 or 5 Layer PE Based
or Laminated, Metalize, Aluminum
Foil, Polypropylene woven bag,
Jute bag, Cotton Bag, Paper Bag,
China fusing, etc
Electrical Requirement
Input Supply 380 V AC, 50 Hz, 3 ph + N + G
Connected Load 2.5 KVA
Peak Power Rating 2.35 KW
Air Requirement
Air Pressure 6 bar Constant dry air
Air consumption 800 ltr/mnt
Machine Dimensions along with
(W x D x H) approx.
3550 mm x 1525 mm 2970 mm
(Depend on customized requirements.)
Weight 600 kgs (Net)
Suitable for Packing Potato Chips, Snacks ,Rice, Macaronis
Beans, Pasta, Dry Fruits, Vermicelli,
Candies & Confectionery products
as well as all kinds of light weight

Types of Products

Add-on Machine Parts

date coding device

Our machines can be equipped with different types of date coding devices such as ink jet printers, thermal date coding devices etc. The date coding device is used to print precise, easy-to-read and indelible date codes and batch codes that are not only critical for many industries but are also mandatory by many Governments around the world. These devices have the ability to print use-by dates, best-before dates and batch codes.
