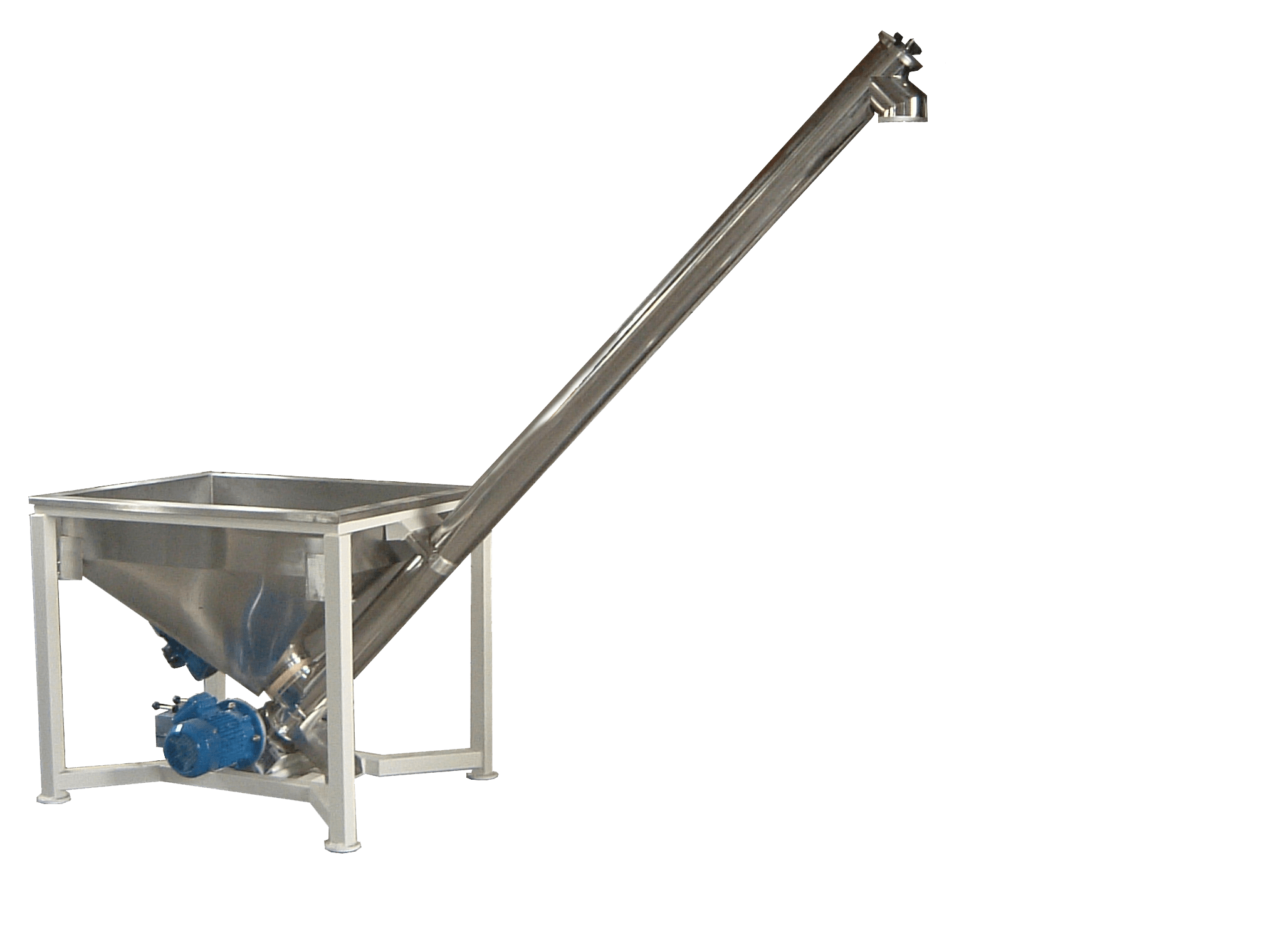

Our screw elevators are made of a spring steel or stainless steel flexible screw that is enclosed in a flexible or rigid plastic tube, or a rigid steel tube, which is driven by an electric motor located at the discharge end of the conveyor. These screws are typically used to transport powder and bulk materials to our machines. We manufacture our own elevators which can be supplied as OEM.

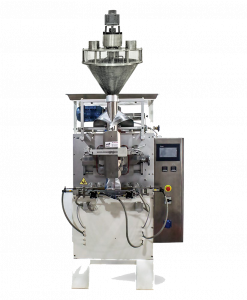

| Output Quantity | 100g – 1000g 1000g /5000g |
| Output | 20 – 75 bags/min 15-30 packs/min |
| Filler Accuracy | ± 5 gm |
| Pack / Quantity Range Min. Bag size (W x L) approx Max. Bag size (W x L) approx |
120 mm x 150 mm 355 mm x 500 mm |
| Packaging Material | Co-extruded 3 or 5 Layer PE Based or Laminated, Metalize, Aluminum Foil 60 to 140 microns |
| Film Reel | Core dia 76 mm & Reel diameter 300 mm max |
| Electrical Requirement | |
| Input Supply | 380 V AC, 50 Hz, 3 ph + N + G |
| Connected Load | 7.2 KVA |
| Peak Power Rating | 6.48 KW |
| Air Requirement | |
| Air Pressure | 6 bar |
| Air consumption | 800 ltr/mnt |
| Machine Dimensions along with conveyor (W x D x H) approx. |
1110 mm x 1700 mm 2400 mm (1300 mm x 1956 mm x 3350 mm) for 5kg |
| Weight | 600 kgs (Net) |
| Suitable for Packing | Potato Chips, Snacks ,Rice, Macaronis Beans, Pasta, Dry Fruits, Vermicelli, Candies & Confectionery products as well as all kinds of light weight products. |
|
