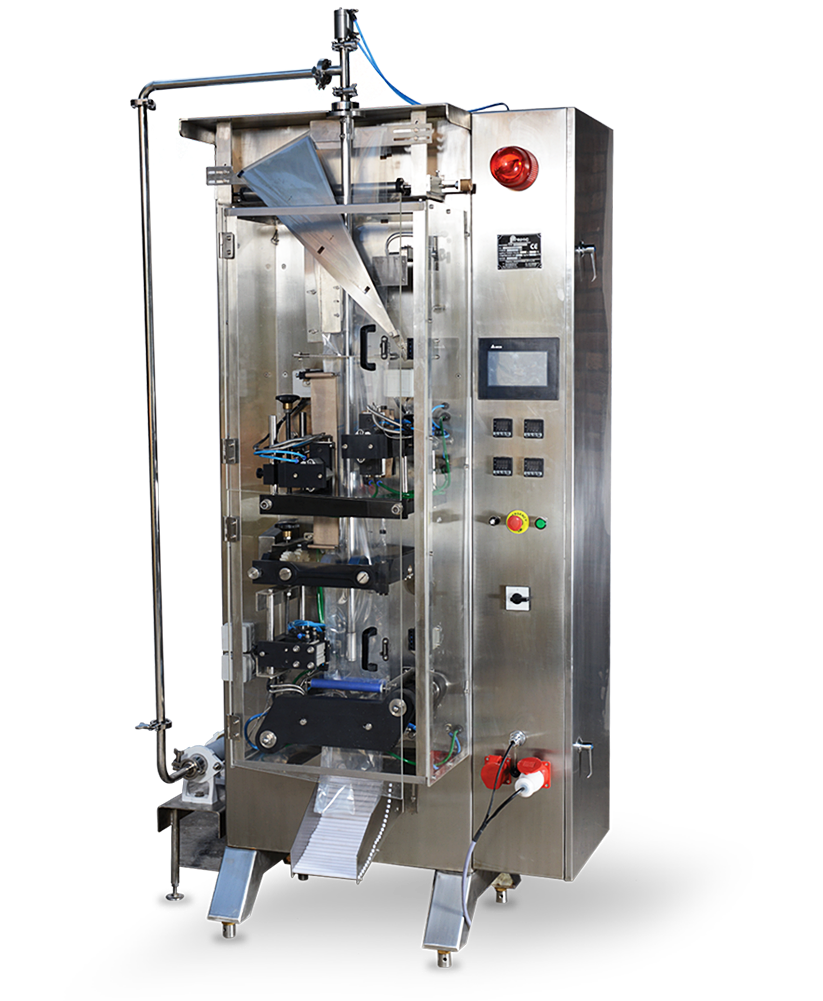

P-1- PUP

PACKAGING MACHINES

Machine Specification

Output Quantity 250ml – 500ml
Output 800-2000 packs/hr
Filler Accuracy ± 3 ml
Pack / Quantity Range
Min. Bag size (W x L) approx
Max. Bag size (W x L) approx

100 mm x 135 mm
170 mm x 265 mm
Packaging Material Co-extruded 3 or 5 Layer PE Based
or Laminated 65 to 120 microns
Film Reel Core dia 76 mm & Reel
diameter 300 mm max
Electrical Requirement
Input Supply 380 V AC, 50 Hz, 3 ph + N + G
Connected Load 5.5 KVA
Peak Power Rating 5 KW
Cooling Water
Flow Rate 150 ltr/hr
Temperature Range 6° to 10°C maintained
Minimum Pressure 2 bar
Machine Dimensions(W x D x H) approx. 735 mm x 640 mm 1890 mm
Weight 450 kgs (Net)
Suitable for Packing Edible Oil, Ghee, Vanaspati,
Pasteurised Fruit Pulp,
Mango Pulp, Fresh Cream,

Water & Lubriction Oil

Types of Products

Add-on Machine Parts

date coding device

Our machines can be equipped with different types of date coding devices such as ink jet printers, thermal date coding devices etc. The date coding device is used to print precise, easy-to-read and indelible date codes and batch codes that are not only critical for many industries but are also mandatory by many Governments around the world. These devices have the ability to print use-by dates, best-before dates and batch codes.
